Product Overview
The LX10 Series Smart Infrared Touch Splicing Display leverages advanced infrared grid touch technology to deliver true 10‑point multi‑touch and simultaneous multi‑user interaction across 94″–300″ large‑format splicing screens. Its modular, detachable aluminum‑profile frame and front‑serviceable design enable easy transport, rapid installation, and hassle‑free maintenance. Built‑in intelligent diagnostic software ensures efficient calibration and fault detection, keeping your display running at peak performance.

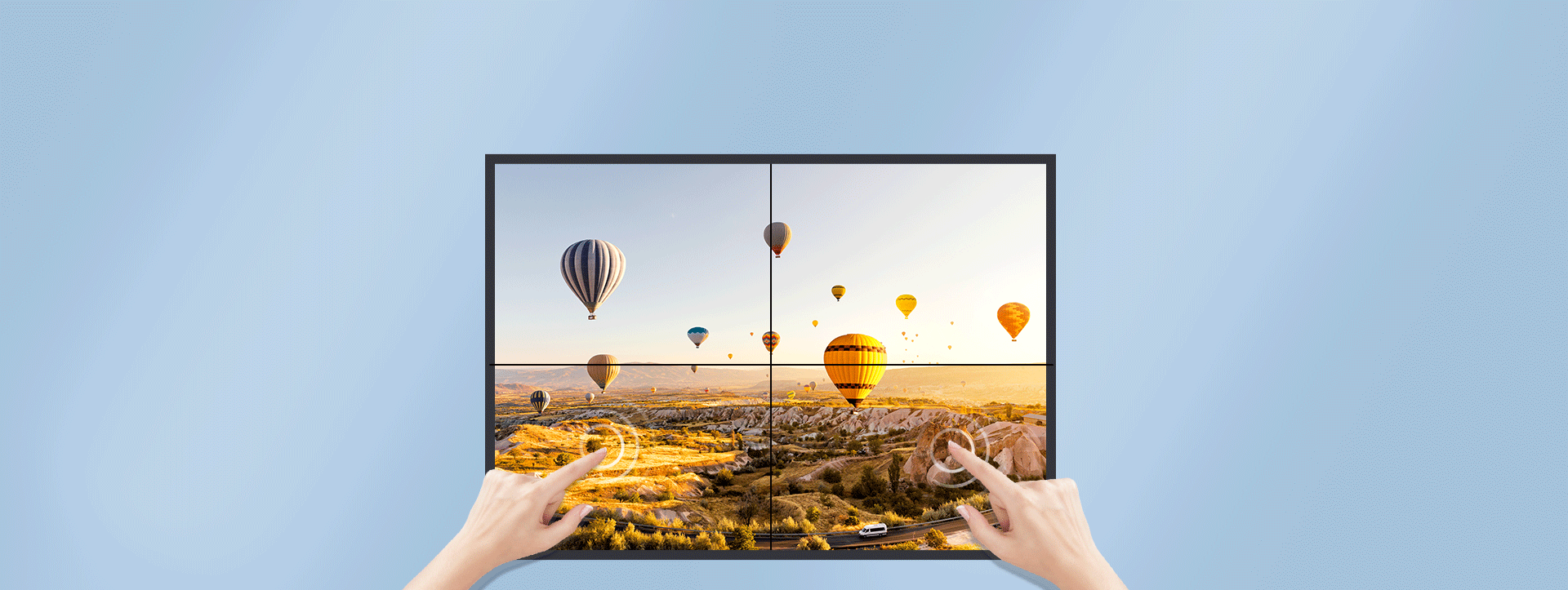

True 10‑Point Multi‑Touch
Supports up to 10 simultaneous touch points with a response rate exceeding 100 fps—ideal for smooth handwriting, annotation, and collaborative operations.
Wide Size Compatibility

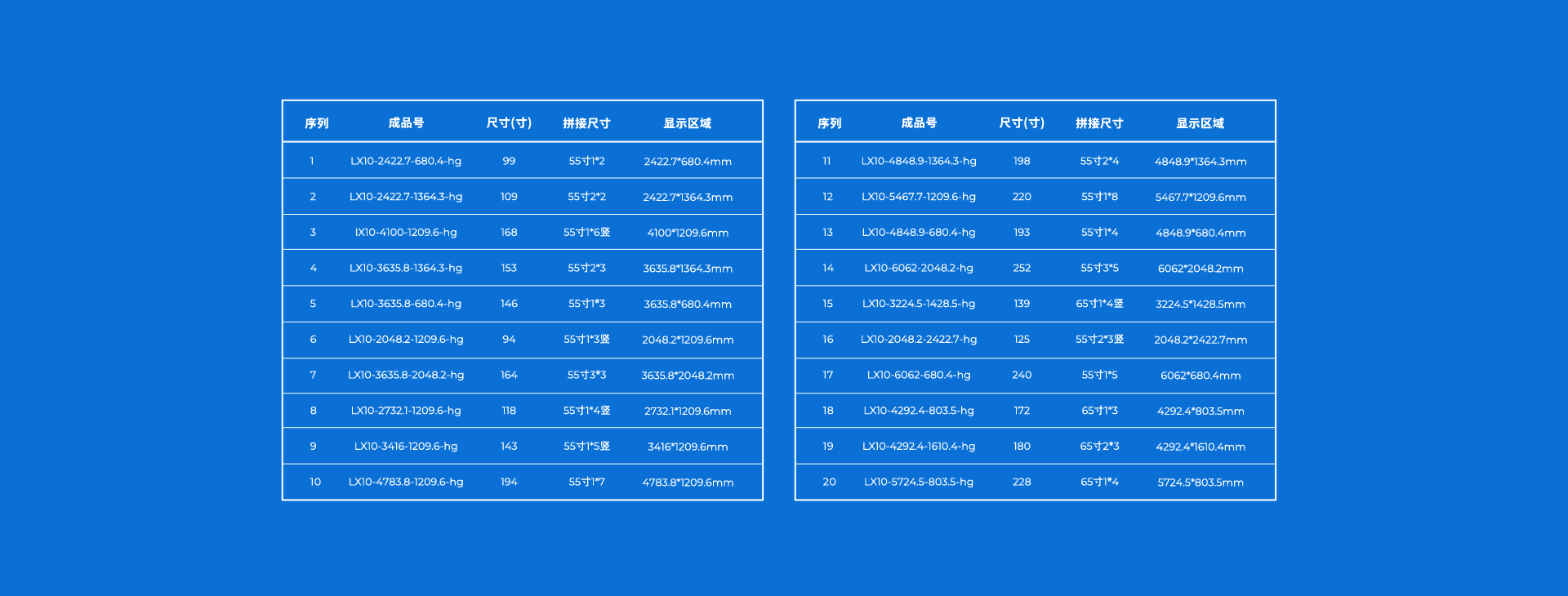

Available in any configuration from 94″ to 300″ splicing units, perfect for conference rooms, control centers, exhibition halls, and more.
Driver‑Free, Cross‑Platform Support
Plug‑and‑play on Windows (2000/XP/Vista/7), Linux, macOS, and Android—no additional drivers required.
Modular, Detachable Construction
Durable aluminum profile with PC filter panel, designed for quick assembly/disassembly. Front‑only maintenance access eliminates rear‑wall disassembly, reducing service downtime and cost.

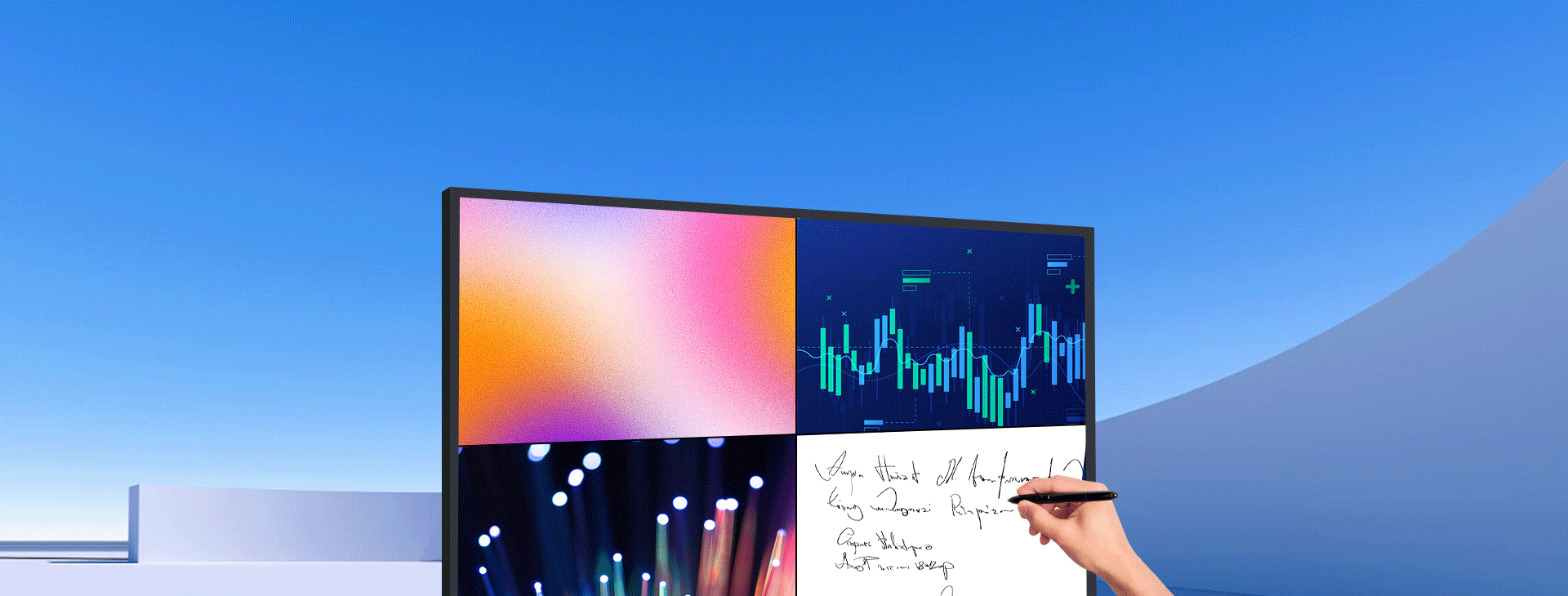

Intelligent Diagnostics & Split‑Screen Control
Includes diagnostic software for real‑time touchscreen health checks and hardware status updates. Static split‑screen zones let you assign independent touch areas for complex multi‑region interactions.
Robust, Low‑Power Design
Operates in temperatures from –20 °C to 60 °C (storage –25 °C to 85 °C) and humidity up to 90% RH (non‑condensing). Meets EN61000‑4‑2 electrostatic protection (contact discharge 8 kV, air discharge 15 kV). USB‑powered (5 V±5% @ 500 mA) with consumption under 2.5 W.
