IRTOUCH ES11 series infrared touch PCBA modules integrate the self-developed second-generation high-performance chip and advanced dynamic sensing algorithm, with ultra-high integration and linear response. It supports 32-65-inch multi-size customization, and provides smooth, accurate and reliable touch solutions for rail transit, billboards, new retail, self-service commerce and other fields at an extreme cost of less than $2/inch.

With excellent performance and competitive cost, IRTOUCH ES11 series infrared touch PCBA module is an ideal choice for various interactive displays and human-computer interaction terminals. Welcome to contact us to customize exclusive size and function solutions!

Overview

Specifications

Resources

ES11 Series

IRTOUCH seventh generation product

Advanced dynamic sensing graph algorithm

IRTOUCH second generation self-developed chip

Multi-channel, signal stepless regulation, high integration, high linearity

High refreshing frame rate of 200Hz

Speed synchronization, seamless interaction

smooth and accurate

20 points of 5mm diameter or 6 points of 3mm diameter writing simultaneously

Fine writing is delicate and realistic

Support as small as 2mm touch object diameter, 15mm spacing

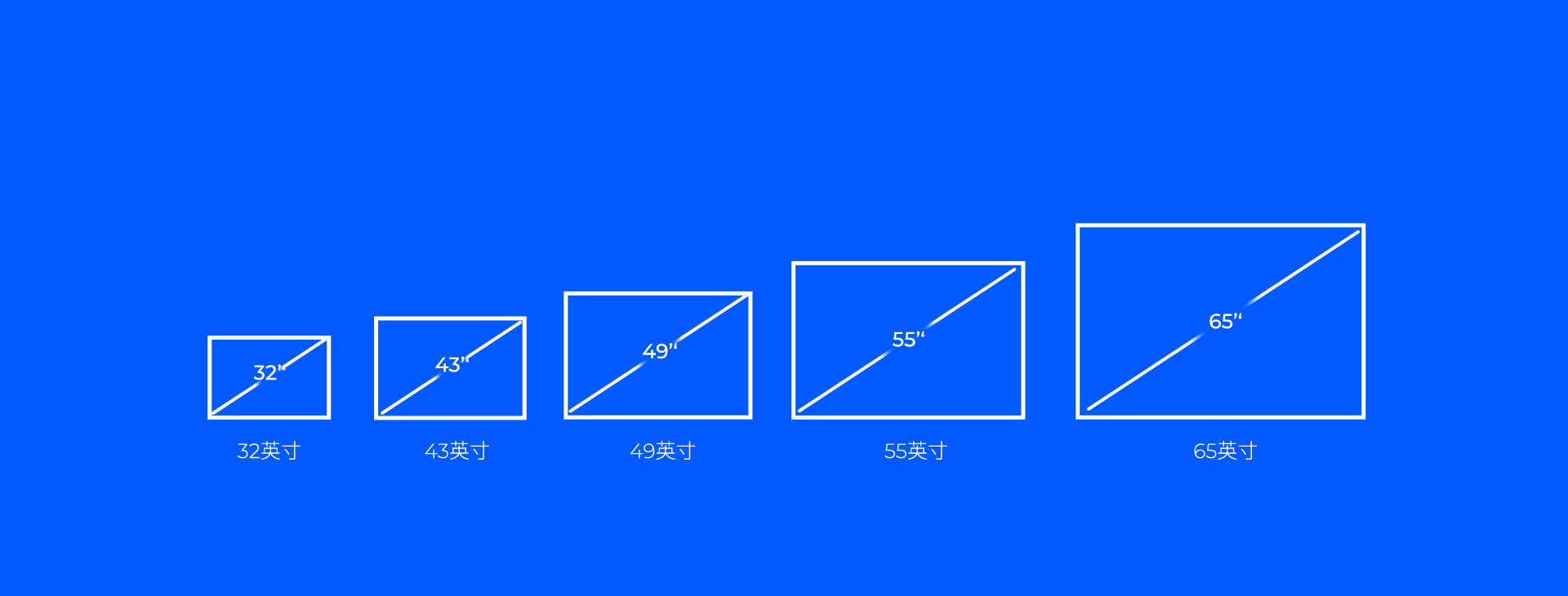

Supports multi-size customization

Supports sizes from 32 to 65 inches

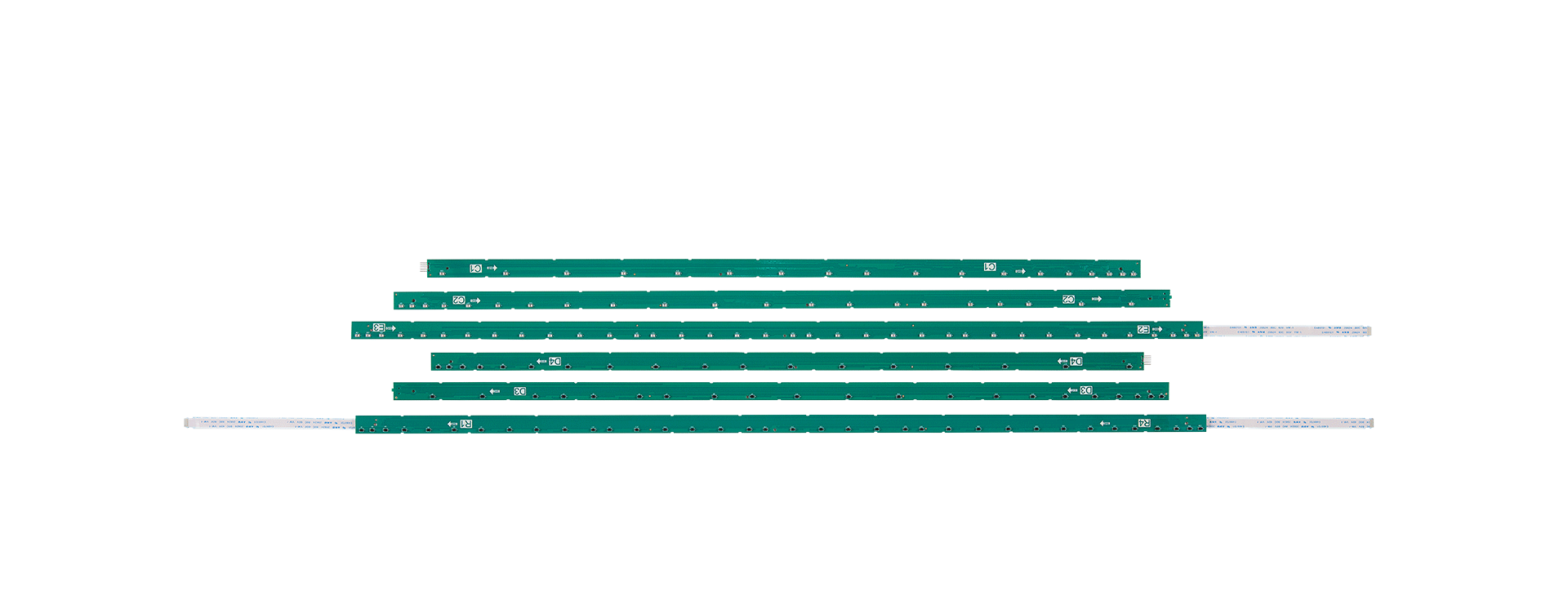

PCBA only (no frames)

lowcost

Less than $2 per inch

Wide applications

Widely used in rail transit, advertising, new retail
business self-help

Commercial self-help

new retail

rail traffic

Dimension

Specifications

Mechanical Specifications

Size range: 32~65 inches
Ratio: 16:9
Material: PCBA

Electrical Specifications

Touch type: Infrared block detection
Touch count: 20 points
Touch accuracy: center < 1mm, edge < 2mm
Power supply specifications: USB power supply (DC5V± 5%@500mA)
Power consumption: < 2.5W
M T B F: 100000Hours

Interface Types

Interface type: USB

Environmental Specifications

Temperature range: Run :-10 ~ 50°C Storage :-40 ~ 85°C
Humidity range: Working: 10%-90%RH, 40℃ no condensation
Storage: 10%-90%RH, 40℃ no condensation
Electrostatic protection: EN 61000-4-2 2008:L3 Class B
Contact discharge 4KV, air discharge 8KV
EMC: CE, FCC Class B Compatible

Software Specifications

Firmware upgrade: Support
Calibration: Four-point calibration
Device type: Touch mode, mouse mode
Operating system: Windows (XP\7\10\11), Linux (≥2.6) Android (≥2.6), Chrome, Mac OS X
