86 Inches Infrared Touch Frame for Large Interactive Displays
Upgrade your large displays with the IRTOUCH IX5100 Infrared Touch Frame — a robust large touch screen overlay engineered for seamless multi-touch interaction in demanding commercial and industrial environments. This IR touch overlay transforms standard monitors into high-performance interactive surfaces up to 86 inches, delivering precise 10-point touch for kiosks, digital signage, and beyond.
Using advanced infrared block detection technology, the infrared touch screen frame creates an invisible grid of IR light beams across the display surface. When a finger, stylus, or glove interrupts the beams, the system instantly calculates the exact touch coordinates with sub-millimeter accuracy. The self-developed anti-sunlight interference design ensures stable performance even in bright outdoor conditions (>150k Lux), while the rugged construction provides true front-side IP65/IP66 protection. Unlike capacitive or resistive alternatives, this multi-touch frame for interactive displays excels in harsh environments and supports gloves, wet hands, or heavy use without false triggers.Get a quote now.
Touch Count: 10 Points for seamless multi-touch interaction

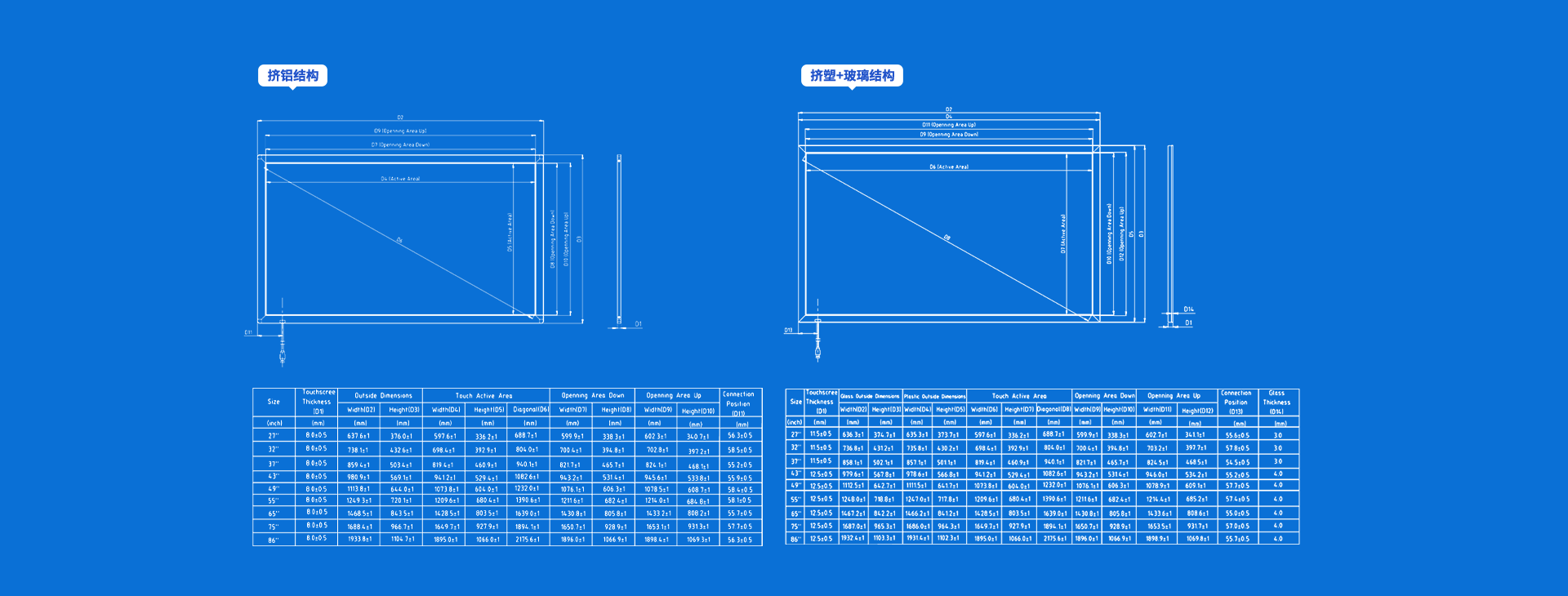

Available Sizes: From 27 to 86 inches for different display needs
Glass: 3~6mm toughened glass for enhanced protection
Shell Material: High-quality extruded aluminum or tube structure for durability
Touch Accuracy:<1mm at the center, <1.2mm at the edges for precise touch performance
Power Supply: USB-powered (DC5V ±5% @ 500mA) for energy efficiency
Low Power Consumption: Less than 1.5W, reducing operating costs
MTBF: 100,000 Hours for long-lasting performance
The 86 Inches Infrared Touch Frame is equipped with front tempered glass protection, ensuring it withstands external damage and continues to operate safely. Its IP65 protection level makes it suitable for use in outdoor environments and various harsh conditions. Our custom infrared touch frames are tailored to meet specific industry needs, such as military or medical applications.
Mounting your IR touch overlay is straightforward. The flexible frame design fits most standard displays. Simply attach the infrared touch frame around the screen, connect via USB, and perform four-point calibration. The included mounting options and strong electromagnetic compatibility ensure trouble-free integration even in complex multi-peripheral setups like self-service kiosks. For outdoor or high-traffic use, the rugged infrared touch frame provides instant protection without compromising responsiveness.
IRTOUCH’s infrared touch screen frame stands out through complete in-house control of structure, circuit, and algorithm, delivering unmatched customization and reliability. With proven performance in the world’s most demanding environments — from outdoor signage to medical equipment — this customizable touch frame for military medical applications offers professional-grade quality at competitive pricing. Backed by full certifications and long-term durability, it’s the smart choice for system integrators and OEM partners worldwide.
Our Infrared Touch Frames are certified under ISO 9001 and ISO 14001 quality and environmental standards, ensuring that each product meets rigorous quality requirements. Additionally, our frames have passed CE and FCC certifications, and comply with RoHS regulations to meet global standards.
Looking for a custom touch frame solution? Our team is here to assist you with detailed specifications, pricing, and support for your project. Contact us now to get your custom quote for the 86 Inches Infrared Touch Frame!
